USB/IP provides remote connection of USB devices. USB devices can be connected to a server and clients can access the device over the network. This can be used to attach physical USB devices (webcam, microcontrollers, SBCs, etc) to development VMs.

The USB/IP protocol follows a client/server architecture where the server experts USB devices that client can import. The device driver for the exported USB device runs on the client machine.

Environment Description

  1. Complete environment is hosted on proxmox.
  2. USB device Logitech Webcam C270 is connected to proxmox host and pass through to Alpine Linux VM.
  3. Alpine Linux VM runs the usbip server component and exports the webcam over the network.
  4. Win11 VM runs the usbip client and "mounts" the webcam from Alpine.
  5. The usbip client emulates a USB AHCI controller with the virtual device connected.
  6. Win11 camera app will detect the webcam as if it were local and display the video.

Config Steps

Step 1: Physical Webcam Connection

Connect the USB Logitech Webcam C270 to the proxmox host and use lsusb to confirm that it is detected. Note the USB device ID 046d:0825, this will be used later.

root@mox:~# lsusb
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 003: ID 8087:0a2a Intel Corp. Bluetooth wireless interface
Bus 001 Device 002: ID 046d:0825 Logitech, Inc. Webcam C270
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

Step 2: Add the USB webcam to Alpine VM

To the Alpine Linux VM, adding the USB device (webcam). Use the device ID from step 1.


Steps:

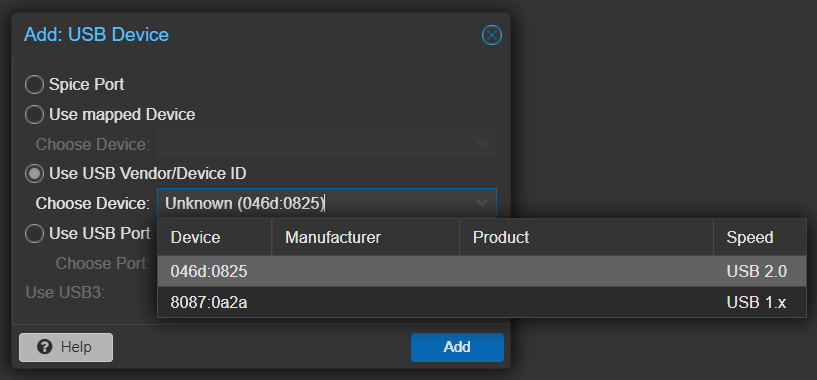

  1. Add USB Device to Alpine VM
  2. Use USB Vendor/Device ID: 046d:0825

Step 3: Alpine VM USBIP Server Setup

# Install required usbip packages
apk add --no-cache linux-tools-usbip
apk add --no-cache hwdata  # optional, for USB device details

# Install the kernel module and start the usbip daemon
modprobe usbip-host
usbipd -D

# Bind the webcam to usbip daemon and export the device
usbip list -l     # list local USB devices which can be exported
# #TODO: show command output

usbip bind -b 9-1 # bind USB bus 9-1 (camera)

usbip list -r localhost  # show successfully exported devices
# #TODO: show command output

Step 4: Win11 VM USBIP Client Setup

  1. Download and install the latest usbip-win release: https://github.com/cezanne/usbip-win/releases
  2. Extract zip file into c:\temp\usbip
  3. Start "Administrator command prompt" and run:
usbip install

# Alpine usbip server is 10.1.2.213
usbip list   -r 10.1.2.213
usbip attach -r 10.1.2.213 -b 9-1

Bugs

Alpine usbip-host kernel module panics and stops running after few mins. Restarting the daemon and publishing the webcam again will make it work for a few minutes.

# dmesg output showing usbip-host kernel bug
[  766.722519] usbip-host 9-1: unlinked by a call to usb_unlink_urb()
[  766.722541] ==================================================================
[  766.722543] BUG: KFENCE: use-after-free read in stub_rx_loop+0x52c/0xeb0 [usbip_host]

Workaround to try is to use Ubuntu usbip server instead of Alpine VM. Ubuntu has multiple packages that offer usbip, need to test and verify the correct one.

References

  1. https://docs.kernel.org/usb/usbip_protocol.html
  2. https://wiki.archlinux.org/title/USB/IP
  3. https://usbip.sourceforge.net/
  4. https://github.com/cezanne/usbip-win
